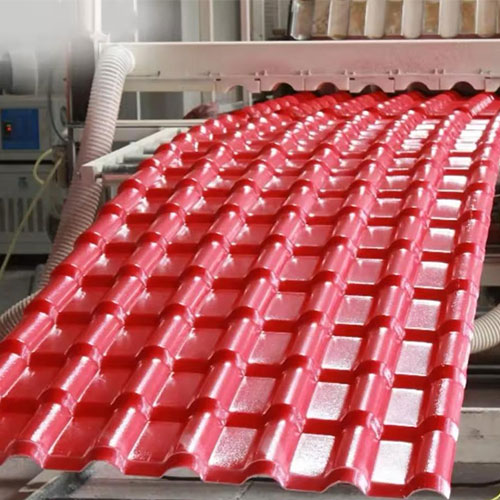

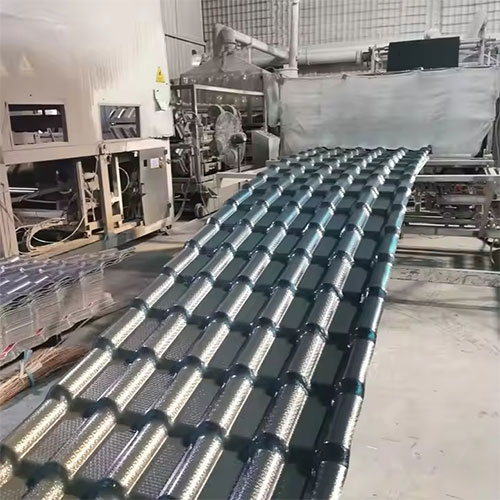

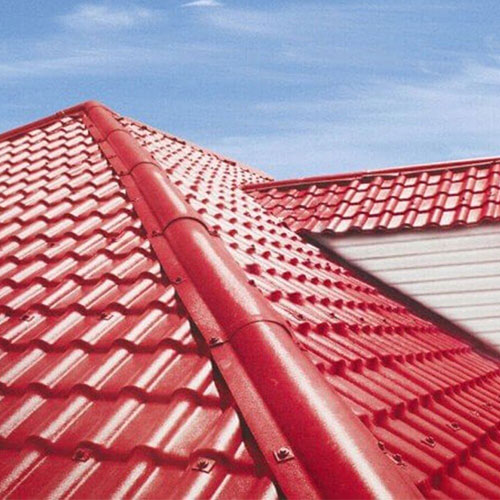

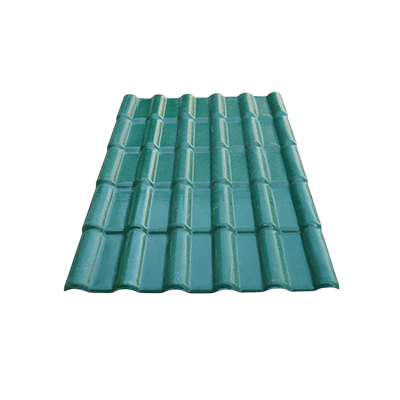

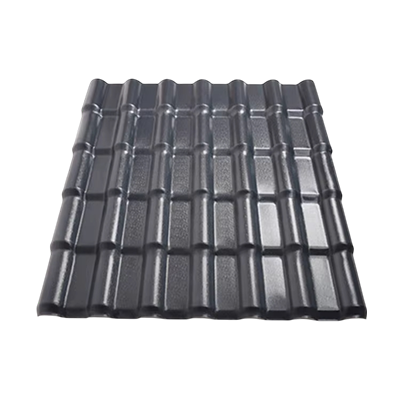

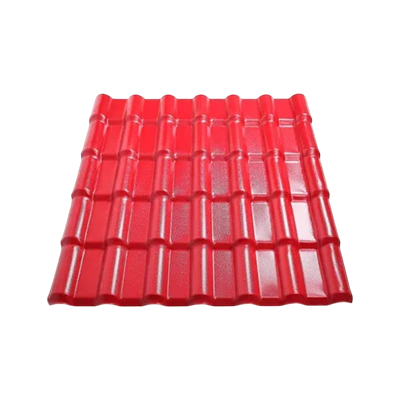

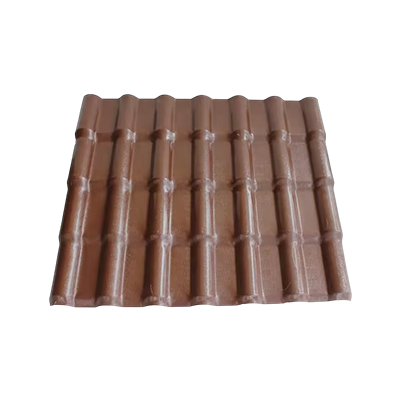

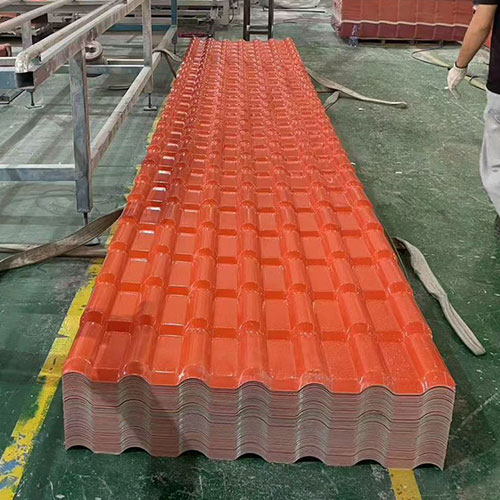

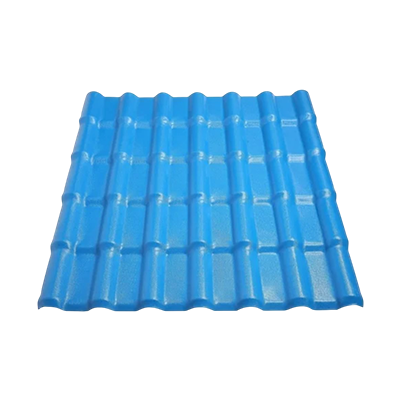

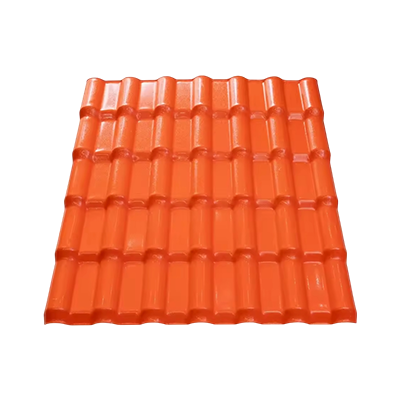

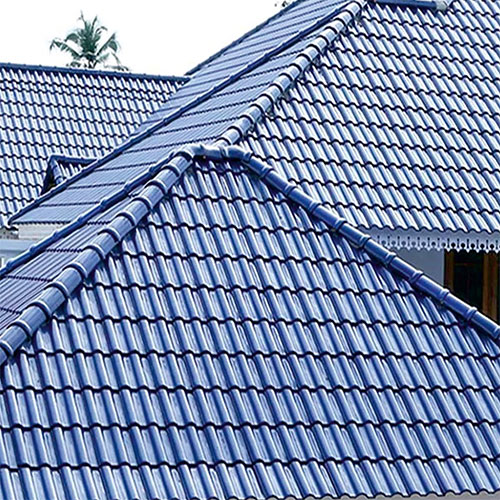

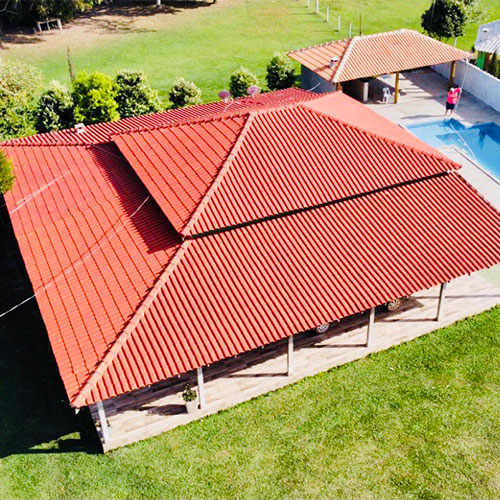

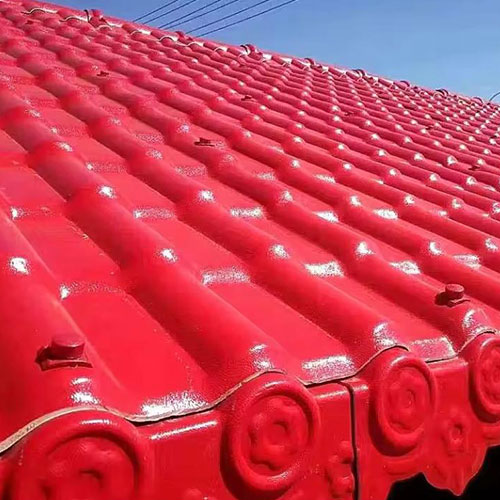

ASA RASIN UPVC ROOFING SHEETS
Product Features
Corrosion resistance
UPVC roof tiles have strong resistance to chemical corrosion such as acid, alkali, salt etc.
Impact resistance
It has got excellent load beating performance and can withstand even 150kg load without any damage.
Fire-proof
The polyvinyl chloride resin in it, and the chemical performance determines that it is difficult to be burned
Sound and heat insulation
The coefficient of heat conductivity is 0.325w/m.k, which is about 1/3 of clay tile, 1/5 of 10-mm thick cement tile,and 1/2000 of 0.5 mm thick color-coated steel tile. It has good sound insulation abillty
Stable and long-lasting color
It can maintain color stability even when exposed to strong ultraviolet rays, humidity,high and low temperature all year round and research has shown that the color quality is preserved for over 25 years.
Good water resistance
Completely non-water-absorbent,each sheet is big enough so as to reduce joints and all the connecting points are tightly connected so no leakage will occur.
Stable volume
The expansion coefficient is 4.93×10-5 (1/ ℃). Even if the temperature changes greatly, the tile expansion can be absorbed by itself to ensure its stable geometric dimension.These sheets preserve their physical qualities between -40 and 80 ℃.
Light weight
The weight is only 4.6-6kg per square metre.It is also easy to handle and lift, which helps to reduce the construction cost.
UV protection
The surface treatment is ASA which is anti-UV.
Environment friendly and energy saving
It is 100% environment friendly,helps save energy and is easy to recycle

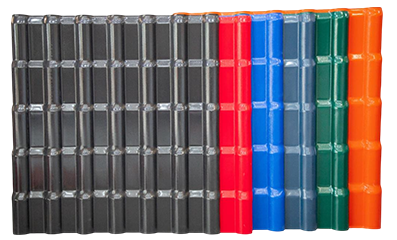

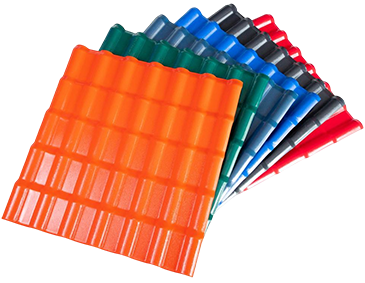

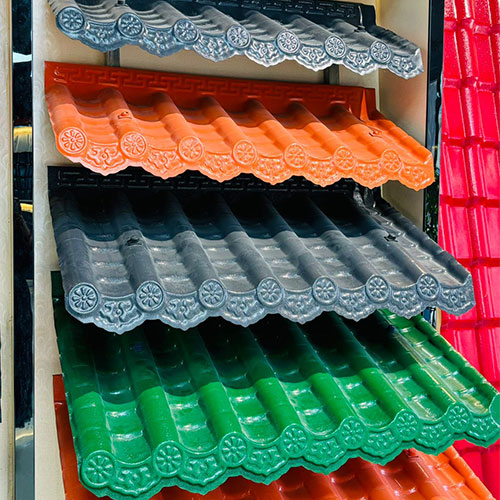

Choose Your Perfect Shade​
Brick Red
Orange
Red
Light Blue
Blue
Green
Light Grey
Dark Grey
Black
Brown
Roof Specifications
| Pitch Quantity | Length (ft) | Pitch Quantity | Length (ft) | Pitch Quantity | Length (ft) |
|---|---|---|---|---|---|
| 1 | 0.719 | 18 | 12.934 | 35 | 25.149 |
| 2 | 1.430 | 19 | 13.652 | 36 | 25.867 |
| 3 | 2.156 | 20 | 14.371 | 37 | 26.586 |
| 4 | 2.874 | 21 | 15.089 | 38 | 27.304 |
| 5 | 3.593 | 22 | 15.808 | 39 | 28.023 |
| 6 | 4.311 | 23 | 16.526 | 40 | 28.742 |
| 7 | 5.030 | 24 | 17.245 | 41 | 29.460 |
| 8 | 5.748 | 25 | 17.963 | 42 | 30.179 |
| 9 | 6.467 | 26 | 18.682 | 43 | 30.897 |
| 10 | 7.185 | 27 | 19.401 | 44 | 31.616 |
| 11 | 7.904 | 28 | 20.119 | 45 | 32.334 |
| 12 | 8.622 | 29 | 20.838 | 46 | 33.053 |
| 13 | 9.341 | 30 | 21.556 | 47 | 33.771 |
| 14 | 10.060 | 31 | 22.275 | 48 | 34.490 |
| 15 | 10.778 | 32 | 22.993 | 49 | 35.208 |
| 16 | 11.497 | 33 | 23.712 | 50 | 35.927 |
| 17 | 12.215 | 34 | 24.430 | 51 | 36.645 |

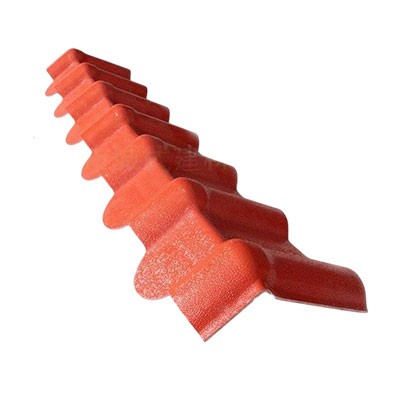

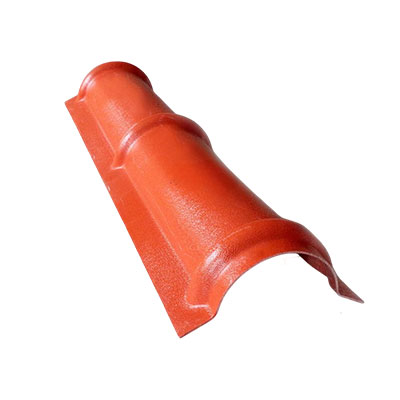

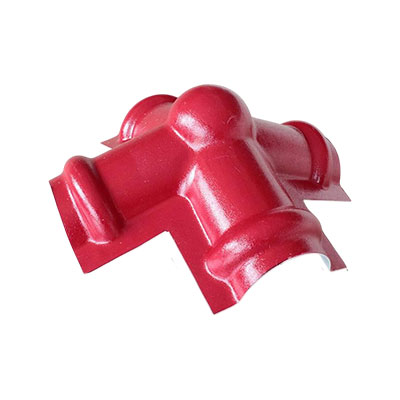

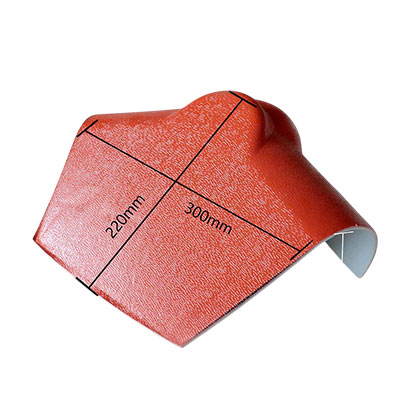

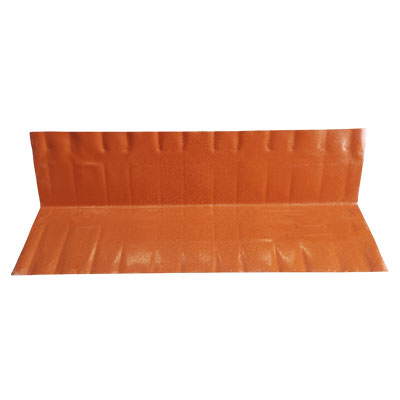

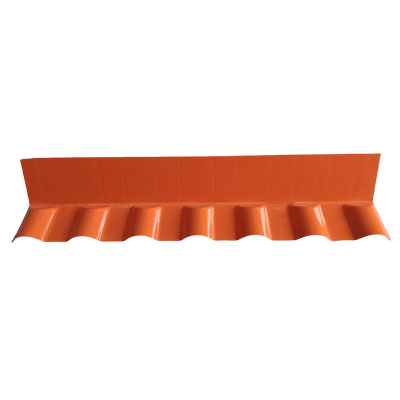

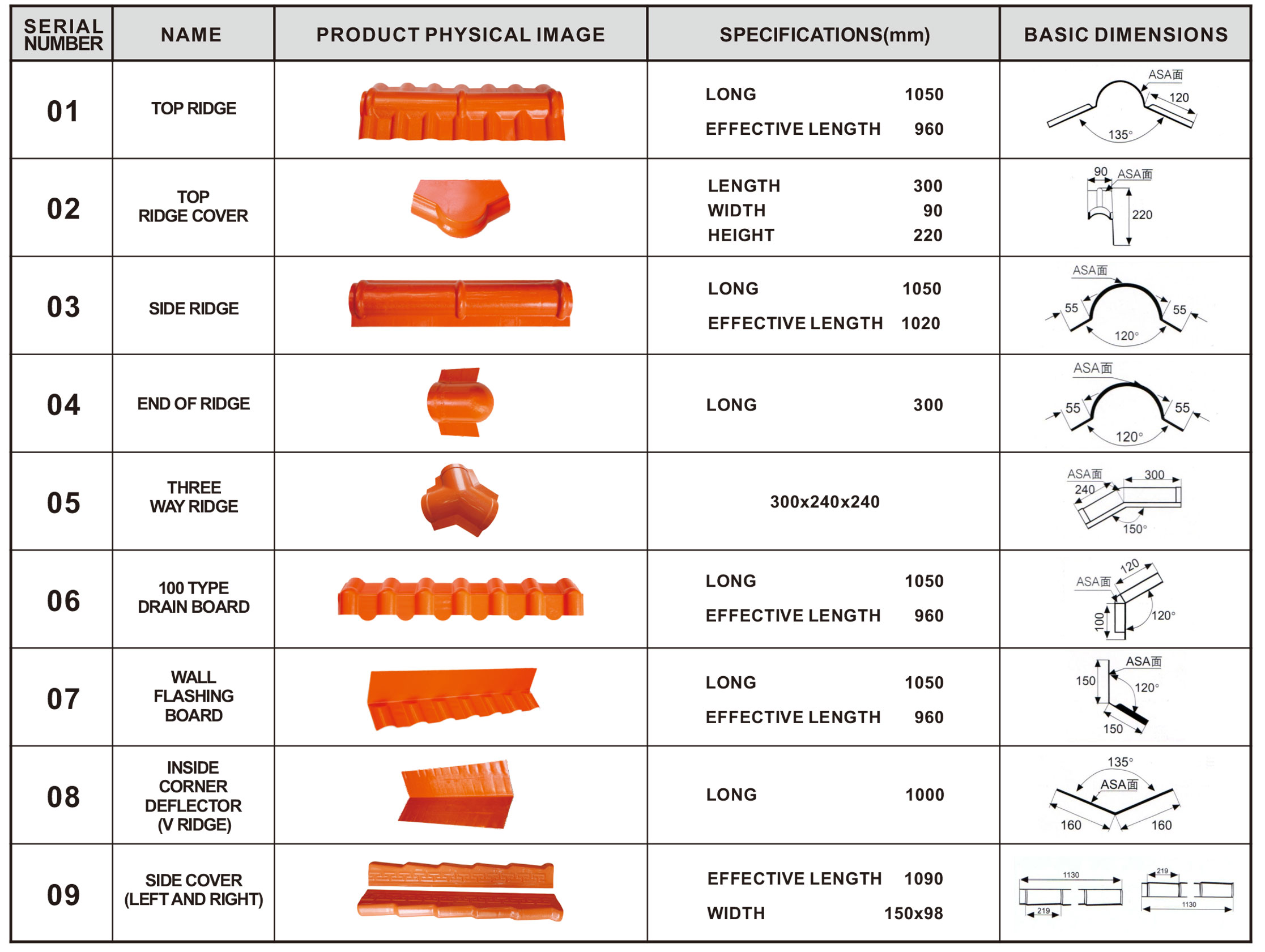

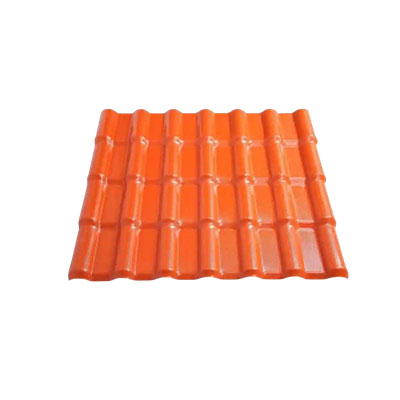

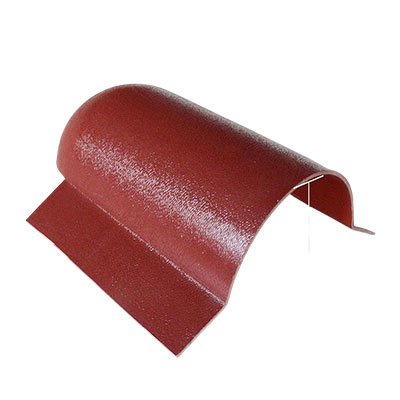

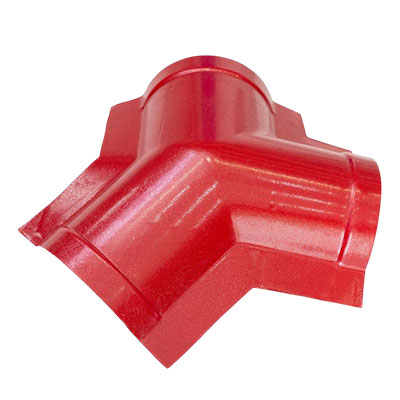

Roof Tile Accessories

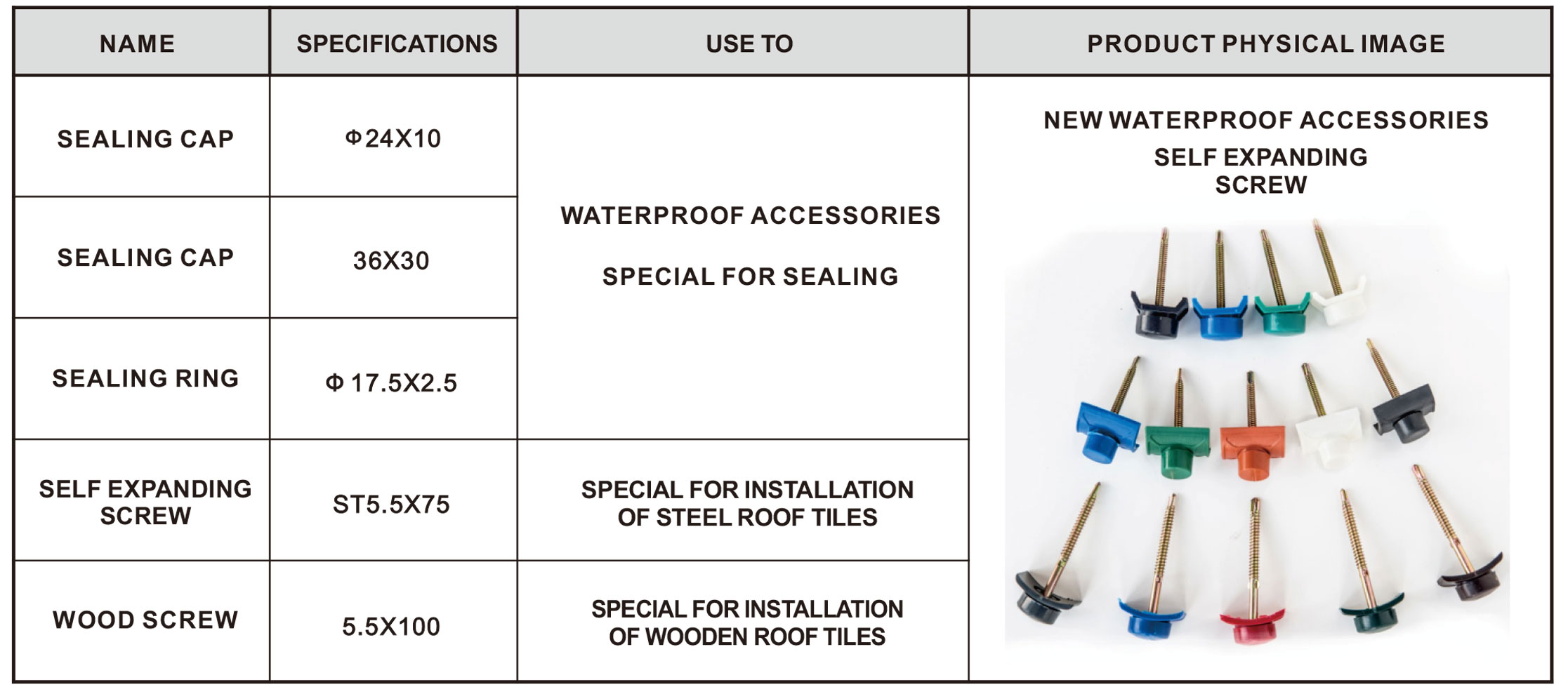

Waterproof Screw Accessories List

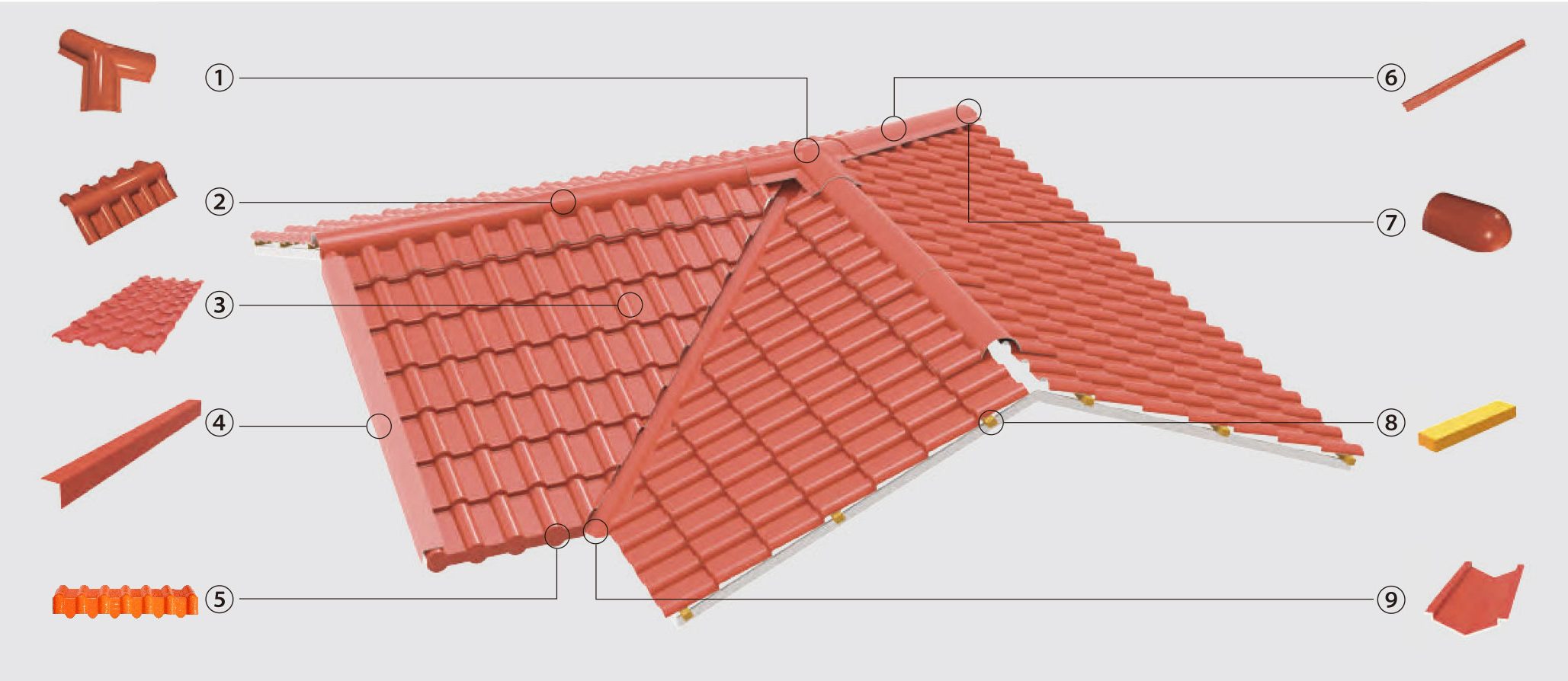

Installation Guideline

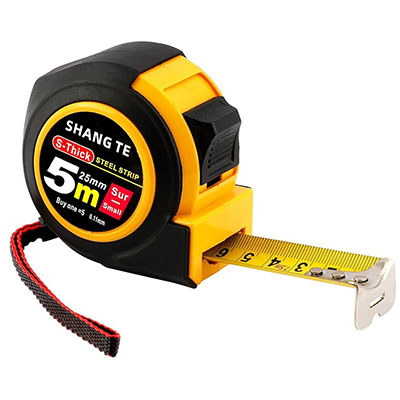

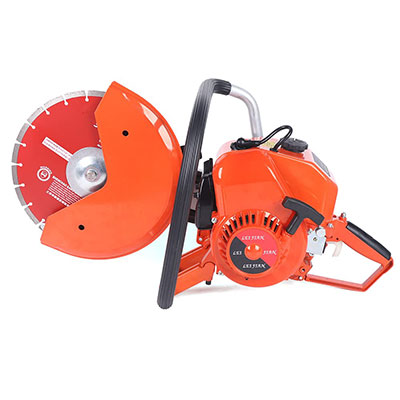

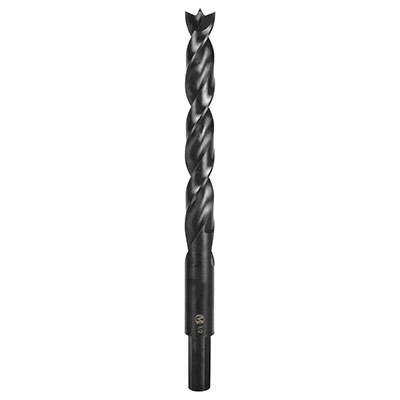

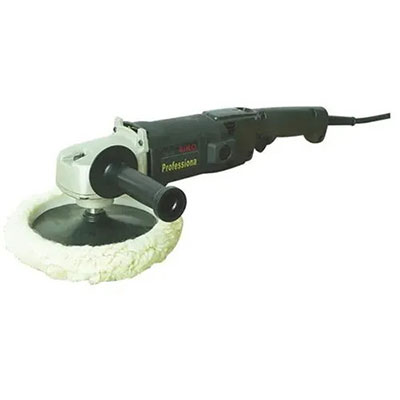

Installation Tools

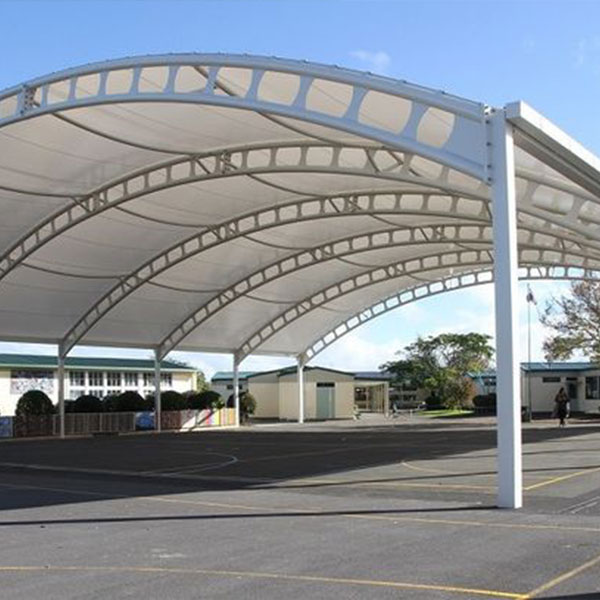

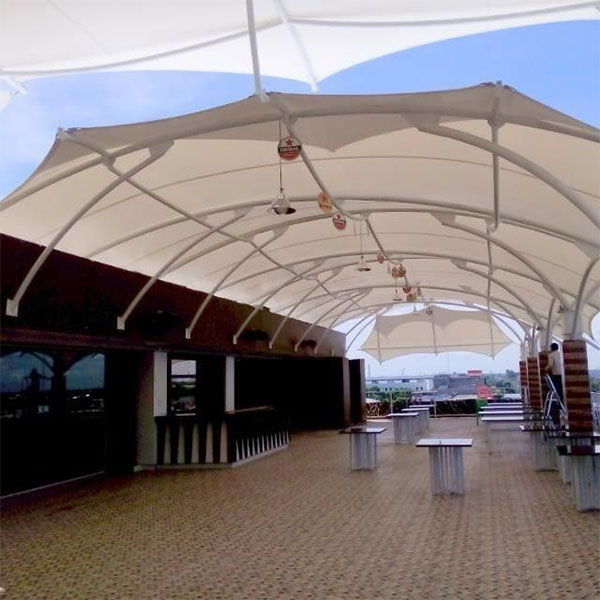

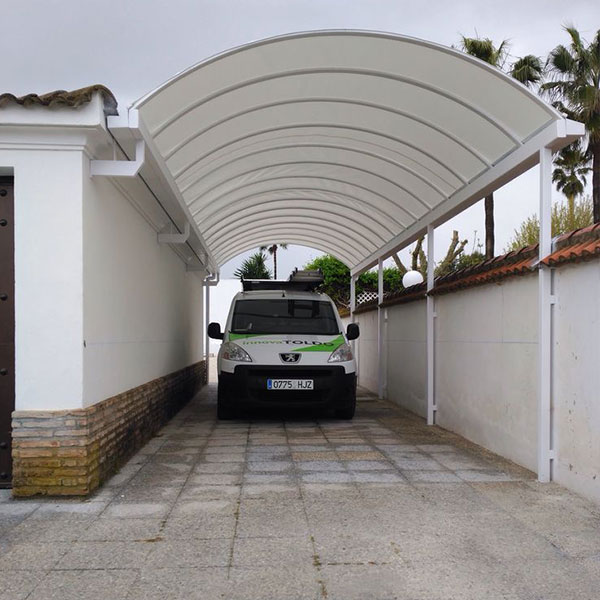

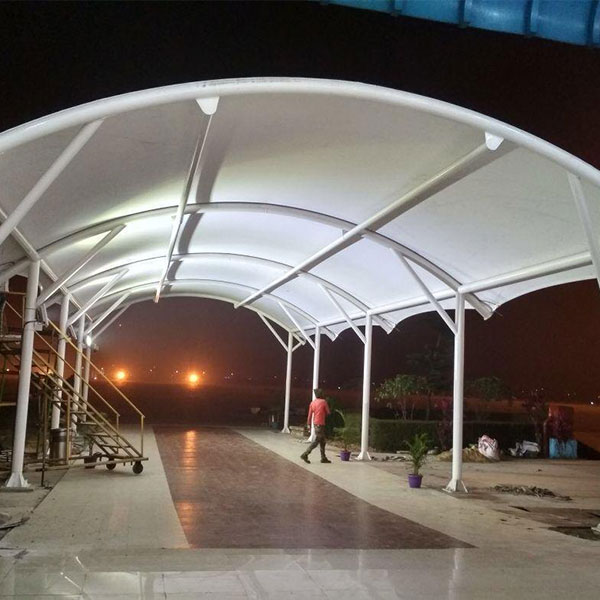

Tensile Fabric Designer Sheds
Weather Resistance
Extensively tested for weather, wind, and sun resistance.
Certified Matching
Approved shades included, with custom colour matching.
High Flexibility & Cleanability
The Silhouetteon membrane features a flexible top finish.
Ideal for Small & Medium Projects

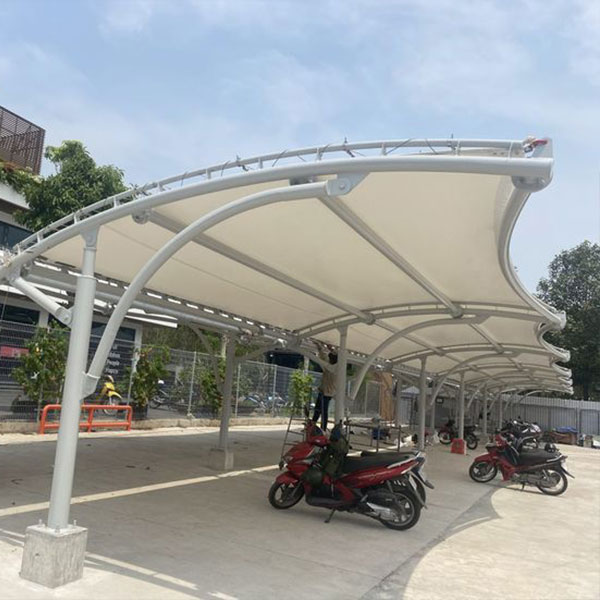

Made especially for uses such as parking lot canopies and sun shade.
Compatible with
welding
Welding processes are compatible with the weldable material.
Cost-Effective
Solution
Offers membrane projects a cost-effective alternative.
Silhouetteon
Carpark Plus
| Coating | PVC |
| Finish | PVDF-lacquer on both sides, antimicrobial, UV-protected |
| Flame retardancy | AS 1530 part 2, AS 1530 part 3, BS 7837 |
| Total weight | 750 g/m² EN ISO 2286-2 |
| Tensile strength warp/weft |
2800 / 2700 N/50 mm |
| Tear strength warp/weft |
300 / 270 N |
| Temperature resistance | -40 °C / +70 °C |
| Adhesion | 20 N/cm PA 09.03 (intern) |
| Light fastness | >6 |
| Crack resistance | >100.000 No cracks |
| Base fabric | 100 % PES |
| For base fabric | low-wick |
| Standard width | 300 cm |
Product Features
Easy Weld
Ensures safe and efficient welding using standard equipment and simplifies installation, requiring less time and work.
PVDF/PMMA
Strong resistance and durability are provided by advanced coating. Protects against weather, scrapes, and strong chemicals.
Self Cleaning
The surface's natural water flow keeps filth from building up. Keeps the goods nice and fresh while reducing cleaning effort.
Long Life
Constructed using high-quality materials for prolonged durability to delivers consistent performance.
Anti UV
Prevents damage to the surface by blocking damaging UV radiation. Even in intense sunlight, it keeps its color and vigor.
Cold Resistant
Performs admirably in extremely cold and freezing temperatures. Prevents brittleness, damage, and cracks over the winter.
Fire Resistant
Made to resist exposure to high temperatures and fire. Increases safety by lowering the possibility of unexpected fires.
Anti Mil Dew
Stops mildew and fungi from growing on surfaces. Keeps the product clean, hygienic, and long-lasting in all seasons.

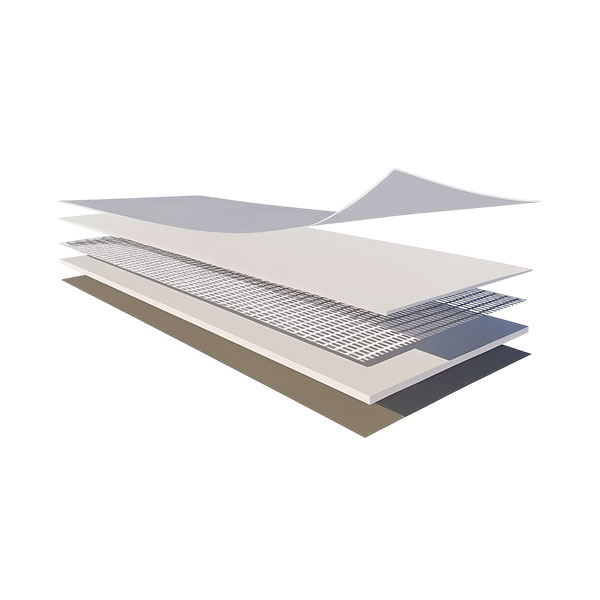

5 Layers of Protection
PVDF or PMMA Lacquer
A layer of protective lacquer that fends off UV rays and grime. Prolongs the life of colors and improves surface durability.
PVDF or PMMA Lacquer
The last coat of lacquer that smooths and seals the surface. Keeps everything looking nice andmakes cleaning easier.
PVC Knife Coating
The bottom coating increases water resistance and toughness. shields against external stress and mechanical wear.
Base Fabric
The structural backbone is made of high-strength woven cloth. Guarantees long-term stability, elasticity, and resistance to tearing.
PVC Knife Coating
Precision knife technology is used to apply a strong PVC coating. Protects against moisture and abrasion and offers a smooth finish.
Flexible Customization Options
Size & Dimensions
Purchase items that are precisely measured to fit you. We modify measurements to precisely meet your needs.
Color Choices
A variety of vivid hues are available for selection. Shades can be altered to match the look of your project or brand.
Lightweight
Savor materials that are made to be both robust and lightweight. Compromise-free, simple to handle, install, and maintain.
